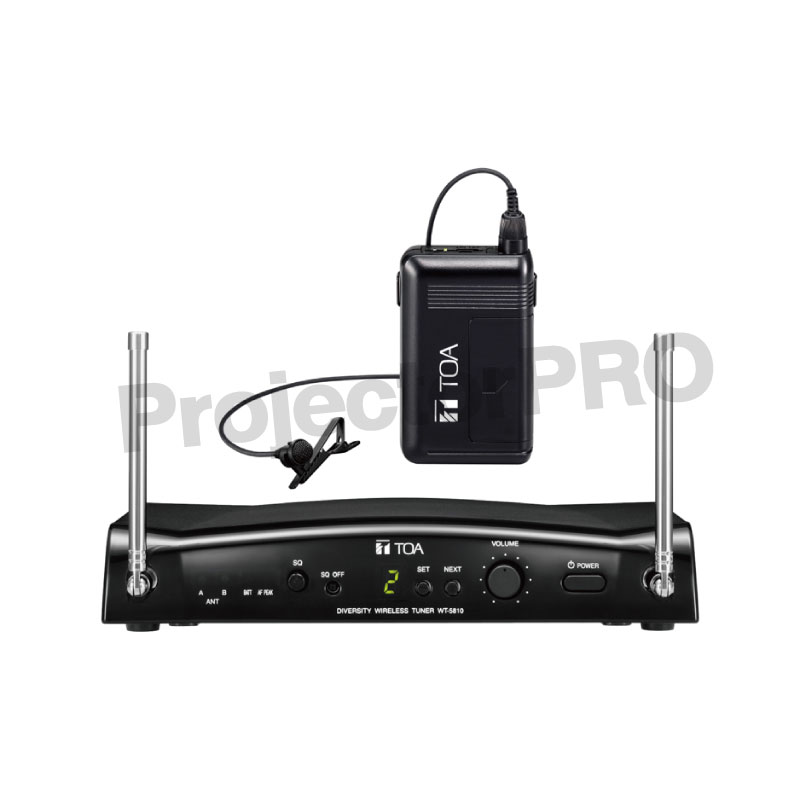

TOA WS-5325U Wireless Set

฿17,900.00

The WS-5325U includes a wireless transmitter WM-5325, a lavalier microphone YP-M5300, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The YP-M5300 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Product Composition : Wireless transmitter WM-5325 …1, Lavalier microphone YP-M5300 …1, Diversity wireless tuner WT-5810 …1

Frequency Range : 576 – 865 MHz (*1), UHF

Tone Frequency : 32.768 kHz

Operating Temperature : -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)

Accessory : AC adapter (*2) …1, Screw driver …1, Strage case …1, Neck strap …13

Wireless Transmitter

Modulation : Frequency modulation

Channel Selectable : 64 channels (the number of channels may differ from country to country)

RF Carrier Power : Less than 50 mW (Factory preset 10 mW ERP)

Oscillator : PLL synthesized

Maximum Input Level : -14 dB to -29 dB (*3) (Audio level control: Min. to Max.)

Battery : WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or
AA alkaline dry cell battery

Battery Life

  • Approx. 13 h (when the WB-2000 rechargeable battery is used)
  • Approx. 10 h (when the alkaline battery is used)

Indicator : Power/Battery lamps

Antenna : Built-in type

Finish : Resin, coating

Dimensions : 62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04″ × 0.91″)

Weight : 90 g (0.2 lb) (with battery)

Lavalier microphone

Microphone Element : Electret condenser type: Unidirectional

Sensitivity : -63 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)

Cord Length : 1.3 m (4.27 ft)

Finish : Dark black

Weight : 20 g (0.71 oz) (cable included)

Diversity Wireless Tuner

Power Source : AC mains (supplied AC adapter must be used)

Power Consumption : 130 mA (12 V DC)

Channel Selectable : 16 channels

Receiving System : Double super-heterodyne

Diversity System : Space diversity

Mixing Output :

  • MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector
  • LINE: -20 dB (*3), 600 Ω, unbalanced, phone jack

Mixing Input : -20 dB (*3), 10 kΩ, unbalanced, phone jack

Antenna : Whip antenna

Receiving Sensitivity : 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)

Squelch Sensitivity : 16 – 40 dBμV variable

Squelch System : Using together of noise SQ, carrier SQ and tone SQ

Indicator : ANT A/B, Audio (peak), Battery alarm, Channel number

Channel Check : Usable frequencies scanning

Signal to Noise Ratio : 104 dB or more (A-weight, unbalanced output)

Harmonic Distortion : 1 % or less (typical)

Frequency Response : 100 Hz – 15 kHz, ±3 dB

Finish : Resin, black

Dimensions : 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6″ × 6.01″) (excluding antenna)

Weight : 590 g (1.3 lb)
