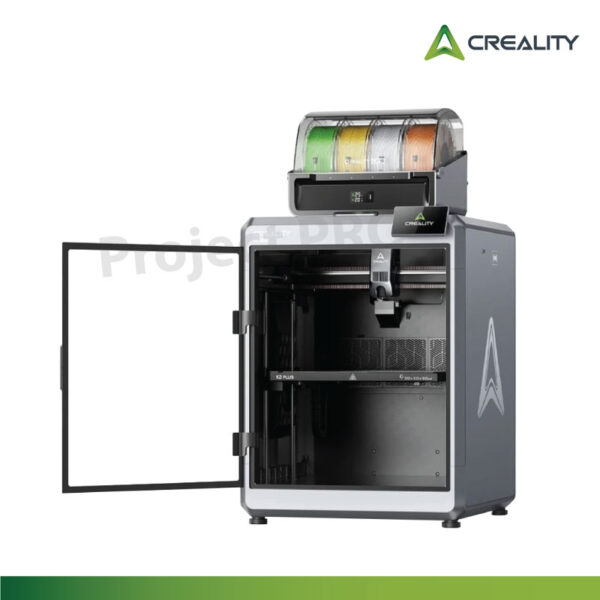

K2 Plus Spec
| Printing Technology |
FDM |
| Build Volume | 350 x 350 x 350 mm |
| Product Dimensions | 495 x 515 x 640 mm |
| Combo Dimensions | 508 x 508 x 916 mm |
| Net Weight(kg) | 35kg |
| Printing Speed | ≤600mm/s |
| Acceleration | 30000mm/s² |
| Printing Accuracy | 100±0.1mm |
| Layer Height | 0.05-0.3mm |
| Extruder | Dual-gear direct drive extruder |
| Filament Diameter | 1.75mm |
| Nozzle Diameter | 4mm |
| Nozzle Temperature | ≤350℃ |
| Heatbed Temperature | ≤120℃ |
| Chamber Temperature | ≤60℃ |
| Build Plate |
Flexible build plate |
| Leveling Mode | Full-auto Leveling |
| XYZE Motor | Servo-step motor |
| File Transfer | USB drive, Ethernet, WiFi |
| File Storage | 32GB EMMC |
| Wifi | 2.4GHz/5GHz |
| Rated Voltage | 100-240V~ AC 50/60Hz |
| Display Screen | 4.3″ color touch screen |
| Rated Power | 1200W |
| Supported Filaments | PLA/ABS/PETG/PA-CF/PLA-CF/PET/ASA/PPA-CF |
| Al Camera for Monitoring | Standard |
| Al Camera for Calibration | Standard |
| Power Loss Recovery | Yes |
| Auto Filament Relay | Yes |
| Filament Tangle Detection | Yes |
| Air Purifier | Yes |
| Input Shaping | Yes |
| Lighting kit | Yes |
| Active Bed Tilt Calibration | Yes |
| Active Belt Tensioning | Yes |
| Active Chamber Heater | Yes |
| RFID-tagged Filaments | Yes |
| Printable File Format | Gcode/3MF |
| CFS Compatibility | Yes |
| Number of CFS Extensions | ≤4 |
| Slicing Software | Creality Print 5.0 or newer versions |
| UI Languages | English/German/Spanish/French/Italian/ Portuguese/Russian/Turkish/Japanese/ Korean/Chinese |
CFS Spec
| Dimensions | 379 x 314 x 276 mm |
| Net Weight | 4.56kg |
| Number of Filament Slots | 4 |
| Drying Method | Desiccant |
| Filament Buffer | IN*4 & OUT*1 |
| Number of Extensions | ≤4 |
| RFID Filament Recognition | Yes |
| Filament Diameter | 1.75±0.05mm |
| Supported 3D Printer | K2 Plus |
| Connection Port | Creality 485 *2 |
| Power Supply | DC 24V (No need of extra power supply while connected to K2 Plus) |
| Rated Power | 20W |
| Status Indicator | Indicator light (white/red) x 4 |
| Display Screen | Segment LCD showing temperature and humidity |
| Filament Spool Compatibility | 1Kg filament spool; diameter: 197-202mm, thickness: 42-68mm |
| Supported Filaments | PLA/PETG/ABS/ASA/PET/PLA-CF; *Not compatible with flexible TPU damp BVOH/PVA, or warped cardboard spools. |
